Wholesale Topsoil Supplies offers reliable and cost-effective hire of soil screeners and topsoil handling equipment across Auckland and Waikato
At Wholesale Topsoil Supplies, we understand these challenges and offer the perfect solution. Our mobile soil screeners and reliable trucks can help you to get those tasks done. And, you get the added benefit of having high-quality equipment available on site, saving you the extra time involved in transporting your soil to and from a screening location.
Contact us to discuss your requirements. Our equipment can handle large volumes and parcels of topsoil as small as 1,000 m³, making our services suitable for both large and small-scale projects across Auckland and Waikato. If you need topsoil, we can supply it bulk. Or, if you have soil to spare, we offer a bulk topsoil clearing service across both regions.
We have a versatile fleet of trucks that can handle various bulk materials, including aggregate and dirt. Our fleet includes:
- 8 X 10-15 m³ trucks
- 1 X 20m³ truck
- 5 X truck and trailer units
Whether you need to transport materials around your site or over long distances, our trucks are up to the task. We use our fleet regularly ourselves, so you can be assured that they are well-maintained and ready to go.
Soil screening plant hire
Our fleet includes four high-quality soil screeners with advanced features to make screening simple and accurate.

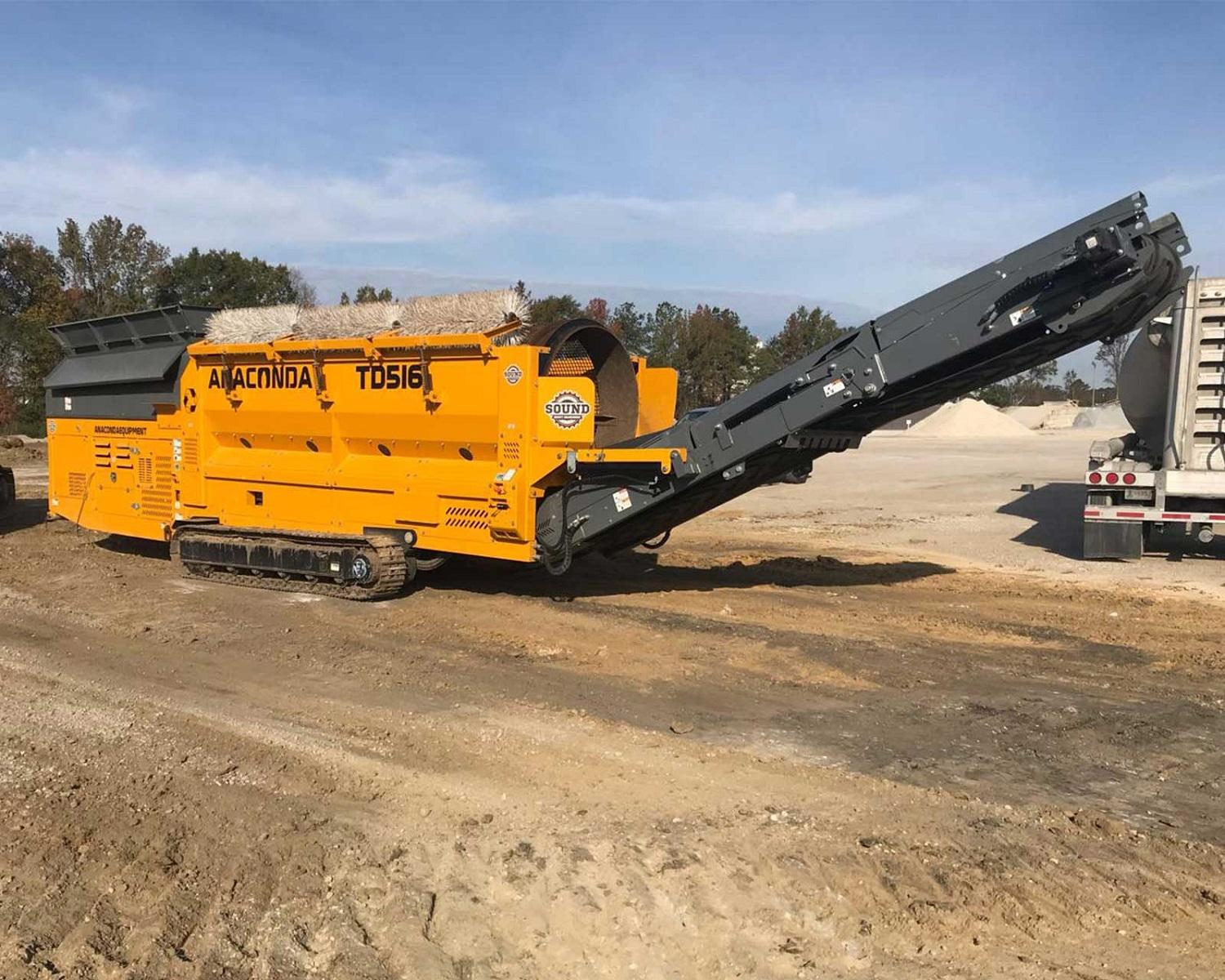

Anaconda TD516R
The TD516R Trommel Screen is designed for optimum screening with the first pass of material.
With a self-cleaning drum and lift bar system, the TD516R operates well even in testing conditions, such as when screening organic matter or recycled materials or soft wet soil or clay. The drum keeps build up to a minimum and the lift bar helps to lift and cut material as it enters the trommel.
The 5.15m long screening drum with a diameter of 1.37m ensures that you are able to get the most fines from your given application as possible and two hydraulic-powered conveyors make it easy to separate and stockpile the product.
The TD516R can deal with a capacity of 150TPH.
- Tier 3 – JCB444 Dieselmax – ROW
- Tier 4F – JCB444 Ecomax IPU or stage 5 Cat – USA
- Stage 5 – T.Deutz 2.9 l4 / Cat / JCB444 Dieselmax – EU
- Screening drum 5.15m (16.9”) long by 1.37m (4.7”) diameter
- Aggressive drum RPM for better results
- Forward and reverse 4 wheel drive drum system
- Variable speed on screening drum and all conveyors
- Quick drum release and replace system
- Adjustable drum screening angle 0-4º

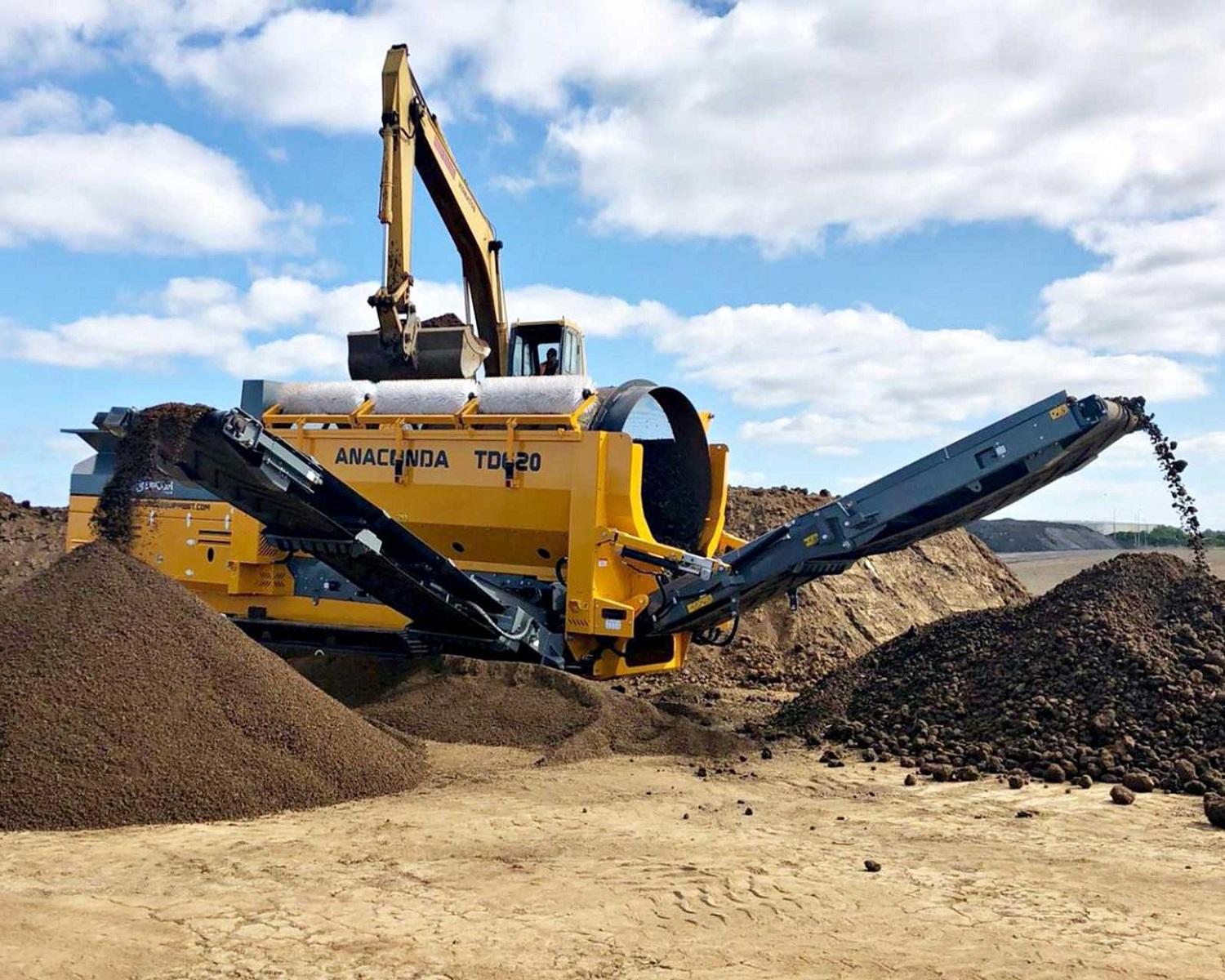

Anaconda TD620
The TD620 Trommel Screen is a well-established screen within the organic recycling industry due to its ability to ensure optimum levels of productivity every time.
The self-cleaning drum and lift bar system will keep you screening in the most testing conditions and ensures that you are able to get the most fines from your given application as possible.
The TD620 has a 5.5m long screening drum with a diameter of 2.0m, with two hydraulic-powered conveyors making it easy to separate and stockpile the product. Problems posed by wet clay, soil or other material binding together have been reduced by the addition of the self-cleaning drum to avoid the build-up of material and keep your mesh clear for passage plus a lift bar system in order to lift and cut material as it is passed through the trommel.
The TD620 can deal with a capacity of 200TPH.
- Tier 3 – CAT4.4 or JCB444 Dieselmax – ROW
- Tier 4f – JCB444 Ecomax IPU or stage 5 CAT 3.6 – USA
- Stage 5 – JCB444 Dieselmax or CAT3.6 – EU
- Quick set-up time
- Screening drum 5.50m long by 2.0m diameter
- Aggressive drum RPM for better results
- Forward and reverse 4 wheel drive drum system
- Variable speed on screening drum and all conveyors
- Quick drum release and replace system
- Adjustable drum screening angle 0-6º
- Drum load sensing system

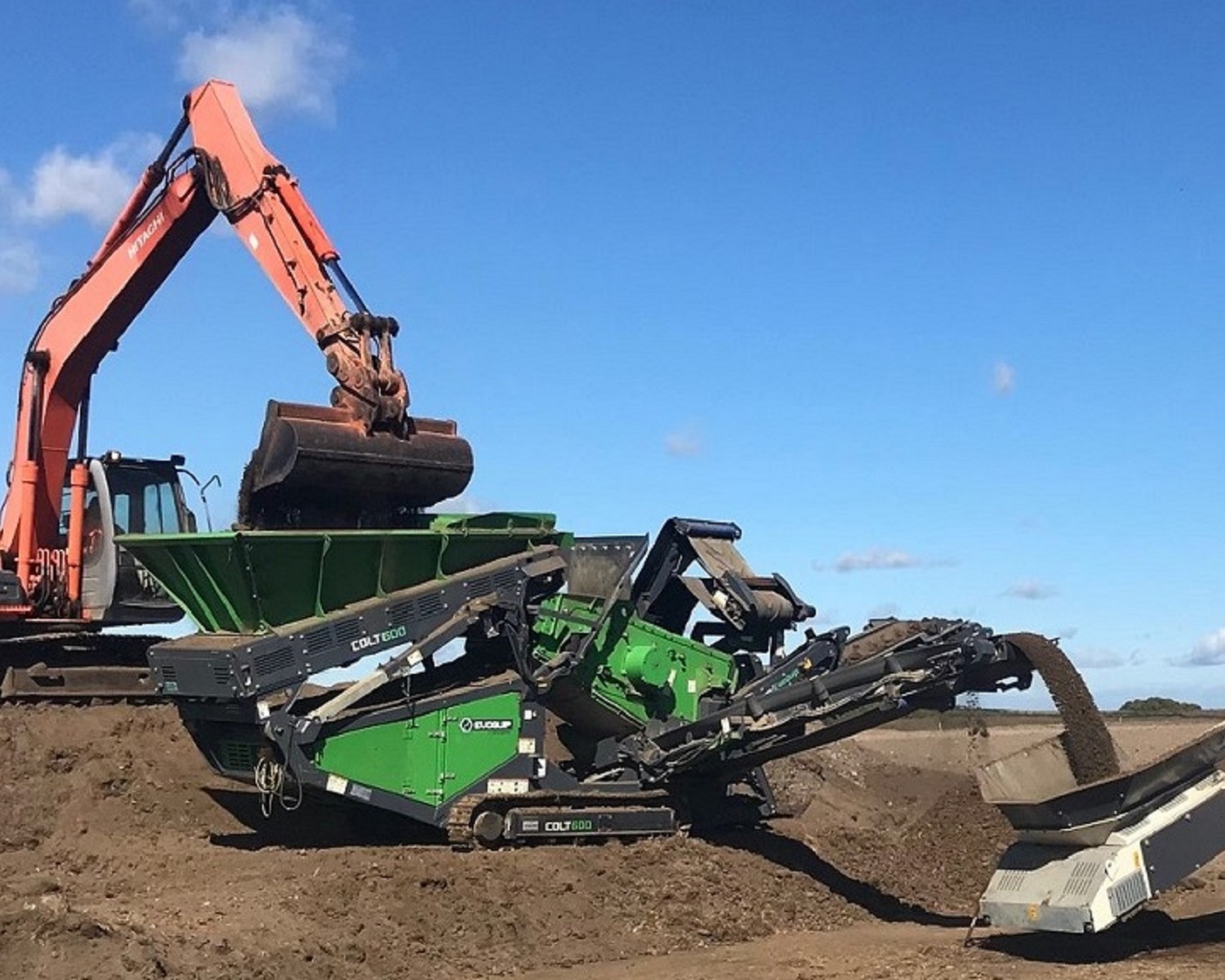

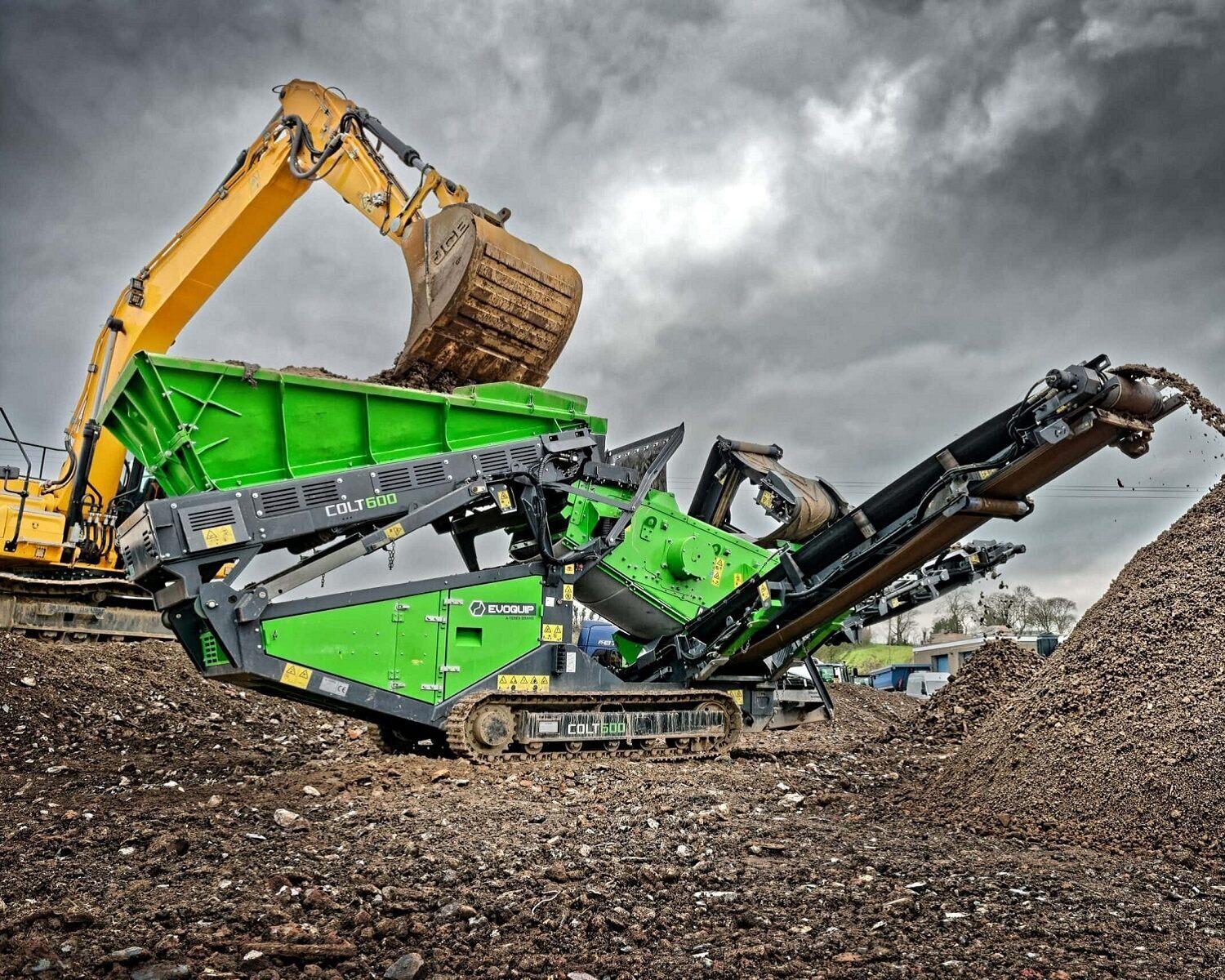

Evoquip Colt 600 x 2
The Colt 600 is the most compact heavy duty incline 2 deck scalping screen of the EvoQuip range. This unit is highly mobile even in built-up areas and can be transported in a shipping container for easy delivery.It's a compact and aggressive forward-facing screen that can work in aggregates, sand, gravel and topsoil applications where site space is at a premium. The multipurpose model is capable of stockpiling, scalping before and after crushing units, or as a standalone unit.
We have two of these screens available for hire.
- High capacity up to 280 TPH (depending on mesh sizes & material type)
- Maximum feed size 300mm. Maximum allowable feed size may vary depending on material
- Smart design minimises weight but retains strength and robustness
- Ultra low fuel consumption with optimised hydraulics
- Rapid conversion from 3 way split to 2 way split (fully hydraulic)
- Heavy duty single shaft incline screen box with adjustable stroke
- Maximum mobility with heavy duty, low ground pressure crawler tracks
- Removable heavy duty pendant remote control system (Option)
- Quick set up time
- High performance hydraulic system – cast iron pumps & motors complete with hydraulic cooler
- Versatile unit for three way splitting, stockpiling or scalping before or after a crusher
- Variable speed hopper
- Variable speed hopper
- Wide range of screen media available discharge
- Variable speed on mid-grade and oversize as standard
Choose from dry hire or use one of our drivers
Our machinery is available with dry hire and with driver options.
If you opt for dry hire, then we'll supply the truck or soil screener, but you'll need to supply the operator. You'll need to have someone on your team who has the appropriate licences and experience to operate your hired equipment.
If you don't have a suitable team member, we also offer hire options that come with operators. In this situation, we'll provide one of our team along with the equipment.
